ArcGIS Engine 10开发手册 书中的代码

最近做AE和WPF的二次开发时，关于无向网了的创建，我参照了ArcGIS Engine 10开发手册这本书中的代码，为了方便大家，就把这本书的代码0分赠送了。要正常运行，最好先安装ArcGIS 的 SDK for .net 和 Runtime,如果安装了 ArcGIS 的Desktop，那么安装下SDK就可以了。需要Runtime的话请给我留言，我会进行上传

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
using System.Windows.Forms;
using ESRI.ArcGIS.esriSystem;
using ESRI.ArcGIS.SystemUI;
using ESRI.ArcGIS.Geometry;
using ESRI.ArcGIS.Display;
using ESRI.ArcGIS.Geodatabase;
using ESRI.ArcGIS.Carto;
using ESRI.ArcGIS.Controls;
using ESRI.ArcGIS.GlobeCore;
using ESRI.ArcGIS.DataSourcesFile;

namespace EngineApplication
{
    class BarRender
    {


        public BarRender（AxMapControl pMapcontrol IFeaturelayer pFtlayer String pFieldName1 string pFieldName2）
        {



            IGeoFeaturelayer pGeoFeaturelayer = pFtlayer as IGeoFeaturelayer;

            pGeoFeaturelayer.ScaleSymbols = true;


            IFeatureClass pFeatureClass = pFtlayer.FeatureClass;

            //定义柱状图渲染组建对象
            IChartRenderer pChartRenderer = new ChartRendererClass（）;
            //定义渲染字段对象并给字段对象实例化为pChartRenderer
            IRendererFields pRendererFields;
            pRendererFields = （IRendererFields）pChartRenderer;
            //向渲染字段对象中添加字段--- 待补充自定义添加
            pRendererFields.AddField（pFieldName1 pFieldName1）;
            pRendererFields.AddField（pFieldName2 pFieldName2）;

            ITable pTable= pGeoFeaturelayer as ITable;

            int[] pFieldIndecies = new int[2];

            pFieldIndecies[0] = pTable.FindField（pFieldName1）;
            pFieldIndecies[1] = pTable.FindField（pFieldName2）;



            IDataStatistics pDataStat = new DataStatisticsClass（）;

            IFeatureCursor pFtCursor = pFtlayer.FeatureClass.Search（null false）;

            pDataStat.Cursor = pFtCursor as ICursor;

            pDataStat.Field = pFieldName2;

            double pMax = pDataStat.Statistics.Maximum;

            // 定义并设置渲染时用的chart marker symbol
            IBarChartSymbol pBarChartSymbol = new BarChartSymbolClass（）;

            pBarChartSymbol.Width = 6;

            IChartSymbol pChartSymbol;
            pChartSymbol = pBarChartSymbol as IChartSymbol;

            IMarkerSymbol pMarkerSymbol;
            pMarkerSymbol = （IMarkerSymbol）pBarChartSymbol;



            IFillSymbol pFillSymbol;
            //设置pChartSymbol的最大值
            pChartSymbol.MaxValue = pMax;
            // 设置bars的最大高度
            pMarkerSymbol.Size = 80;
            //下面给每一个bar设置符号

            //定义符号数组
            ISymbolArray pSymbolArray = （ISymbolArray）pBarChartSymbol;



            //添加第一个符号
            pFillSymbol = new SimpleFillSymbolClass（）;
            pFillSymbol.Color = GetRGBColor（193 252 179） as IColor;
            pSymbolArray.AddSymbol（pFillSymbol as ISymbol）;
            //添加第二个符号
            pFillSymbol = new SimpleFillSymbolClass（）;
            pFillSymbol.Color = GetRGBColor（145 55 251） as IColor;
            pSymbolArray.AddSymbol（pFillSymbol as ISymbol）;




            pChartRenderer.ChartSymbol = pChartSymb

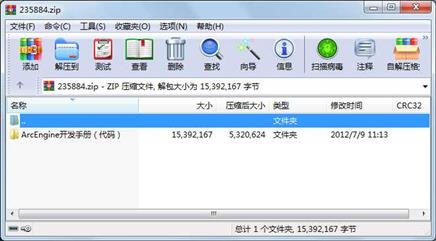

 属性            大小     日期    时间   名称
----------- ---------  ---------- -----  ----
     目录           0  2012-07-09 11:13  ArcEngine开发手册（代码）\
     目录           0  2012-07-09 11:13  ArcEngine开发手册（代码）\bar\
     文件      372224  2011-04-28 22:28  ArcEngine开发手册（代码）\bar\DevComponents.DotNetBar.Design.dll
     文件     4554752  2011-04-29 00:09  ArcEngine开发手册（代码）\bar\DevComponents.DotNetBar2.dll
     目录           0  2012-07-09 11:13  ArcEngine开发手册（代码）\EngineApplication\
     文件        1295  2012-07-05 21:23  ArcEngine开发手册（代码）\EngineApplication.sln
     文件       38400  2012-07-10 10:14  ArcEngine开发手册（代码）\EngineApplication.suo
     文件         144  2012-07-02 20:48  ArcEngine开发手册（代码）\EngineApplication\app.config
     文件        4230  2011-08-11 09:39  ArcEngine开发手册（代码）\EngineApplication\BarRender.cs
     文件       34098  2011-10-18 09:38  ArcEngine开发手册（代码）\EngineApplication\biaozhu.cs
     目录           0  2012-07-09 11:13  ArcEngine开发手册（代码）\EngineApplication\bin\
     目录           0  2012-07-09 11:13  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\
     文件      372224  2011-04-28 22:28  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\DevComponents.DotNetBar.Design.dll
     文件     4554752  2011-04-29 00:09  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\DevComponents.DotNetBar2.dll
     文件      157696  2012-07-10 09:37  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\EngineApplication.exe
     文件         144  2012-07-02 20:48  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\EngineApplication.exe.config
     文件      304640  2012-07-10 09:37  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\EngineApplication.pdb
     文件       11600  2012-07-10 09:34  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\EngineApplication.vshost.exe
     文件         144  2012-07-02 20:48  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\EngineApplication.vshost.exe.config
     文件         490  2010-03-17 22:39  ArcEngine开发手册（代码）\EngineApplication\bin\Debug\EngineApplication.vshost.exe.manifest
     目录           0  2012-07-09 11:13  ArcEngine开发手册（代码）\EngineApplication\bin\x86\
     目录           0  2012-07-09 11:13  ArcEngine开发手册（代码）\EngineApplication\bin\x86\Debug\
     文件     2510848  2007-10-25 10:41  ArcEngine开发手册（代码）\EngineApplication\bin\x86\Debug\DevComponents.DotNetBar.dll
     文件      157184  2011-12-22 13:57  ArcEngine开发手册（代码）\EngineApplication\bin\x86\Debug\EngineApplication.exe
     文件      312832  2011-12-22 13:57  ArcEngine开发手册（代码）\EngineApplication\bin\x86\Debug\EngineApplication.pdb
     文件       14848  2011-12-22 13:57  ArcEngine开发手册（代码）\EngineApplication\bin\x86\Debug\EngineApplication.vshost.exe
     文件         490  2009-06-11 05:14  ArcEngine开发手册（代码）\EngineApplication\bin\x86\Debug\EngineApplication.vshost.exe.manifest
     文件        2288  2011-05-26 15:42  ArcEngine开发手册（代码）\EngineApplication\ChartRender.cs
     文件        5413  2011-05-26 15:42  ArcEngine开发手册（代码）\EngineApplication\ClassRender.cs
     文件         246  2011-12-05 15:03  ArcEngine开发手册（代码）\EngineApplication\CommandTest.bmp
     文件        4008  2011-12-05 15:03  ArcEngine开发手册（代码）\EngineApplication\CommandTest.cs
............此处省略72个文件信息
