16*16LED字符点阵

由8*8构成16*16的字符点阵，是一课程设计的题目，可以直接使用，效果很不错

#include
sbit SH_CP=P2^0;
sbit DS=P2^1;
sbit ST_CP=P2^2;
unsigned char code display[]={


0x220x100x1A0x600x030x800xFF0xFF0x0A0x800x320x600x000x000x220x00
0x2A0xFF0x2A0xA80xFE0xA80x2A0xAA0x2A0xA90x2A0xFE0x220x000x000x00/*“精“0*/

0x000x020x280x840x260x880x200xB00x300xC00x4D0xFF0x400xA00xC40x90
0x580x880x000x010x040x210x080x420x100x840x610x080x060x300x000x00/*“彩“1*/

0x000x000x1F0xFE0x300x840xD00x840x100x840x100x840x1F0xFE0x020x00
0x0C0x000xF10x000x100xC20x100x010x100x020x1F0xFC0x000x000x000x00/*“的“2*/

0x000x010x000x020x030xEC0x020x200x020x200x020x280xFE0x260x120x20
0x120x280x120x260x120x200x130xE00x100x080x100x070x000x000x000x00/*“点“3*/

0x000x000x7F0xFF0x400x100x440x080x5B0x100x600xE00x100x100x130x10
0x1D0x100xF10x100x170xFF0x110x100x110x100x110x100x100x100x000x00/*“阵“4*/

0x020x000x020x000x420x000x330xFC0x000x090x020x110x050x020x790xC2
0x410x340x410x080x410x140x790x620x050x820x040x010x040x010x000x00/*“设“5*/

0x020x000x020x000x420x000x330xFE0x000x040x020x080x020x000x020x00
0x020x000xFF0xFF0x020x000x020x000x020x000x020x000x020x000x000x00/*“计“6*/
0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00/*“ “0*/

0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00/*“ “1*/

};
void  hc595_senddat（unsigned char dat）
{
	unsigned char i;
	for（i=0;i<8;i++）
	{
		dat>>=1;
		DS=CY;
		SH_CP=0;
		SH_CP=1;

	}
}
main（）
{
	unsigned char i;
	int move=0speed=0;
	while（1）
	{	 if （++speed>20）
	     {
		    speed=0;
            move++;
			if （move>112）
			move=0;
		 }
		 		for（i=0;i<16;i++）
		{
			hc595_senddat（display[2*i+1+2*move]）;
			hc595_senddat（display[2*i+2*move]）;
			P3=i;
			ST_CP=1;
			ST_CP=0;
		}
	}
}

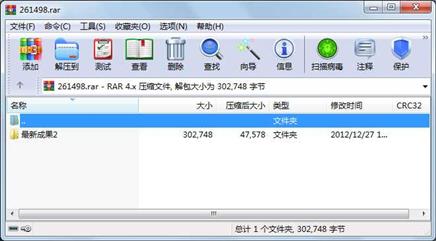

 属性            大小     日期    时间   名称
----------- ---------  ---------- -----  ----

     文件     106396  2012-12-01 23:46  最新成果2\16x16.DSN

     文件        742  2012-12-01 23:46  最新成果2\16x16.PWI

     文件     106403  2012-12-01 23:43  最新成果2\Last Loaded 16x16.DBK

     文件       2541  2012-12-01 23:40  最新成果2\不同2

     文件       2000  2012-12-01 23:40  最新成果2\不同2.c

     文件       1252  2012-12-01 23:40  最新成果2\不同2.hex

     文件         27  2012-12-01 23:40  最新成果2\不同2.lnp

     文件       4189  2012-12-01 23:40  最新成果2\不同2.LST

     文件       4582  2012-12-01 23:40  最新成果2\不同2.M51

     文件       2808  2012-12-01 23:40  最新成果2\不同2.OBJ

     文件       3357  2012-12-01 23:40  最新成果2\不同2.plg

     文件      55219  2012-12-01 23:41  最新成果2\不同2.uvopt

     文件      13232  2012-12-01 23:41  最新成果2\不同2.uvproj

     文件          0  2012-12-01 23:08  最新成果2\不同2_uvproj.bak

     目录          0  2012-12-27 14:37  最新成果2

----------- ---------  ---------- -----  ----

               302748                    15
