资源简介
上传一个我写的数字全息软件,用Matlab6.5 GUIDE 做的
这个软件可以用来做数字全息图的预处理、全息再现、相位滤波、相位去包裹
可以应用于数字全息三维形貌测量、微小位移或形变测量

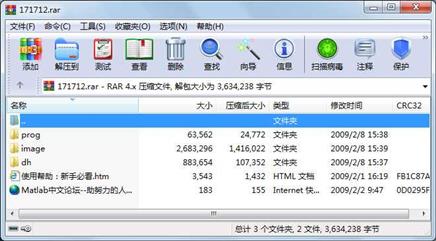

附件里dh文件夹中是图形界面的m文件和fig文件,prog文件夹是一些算法的m文件,被dh里的界面程序调用,image里面是几张全息实验的原始数据。
不排除程序有bug,如果有谁发现了通知我一下,谢了
希望从事数字全息研究的如果有兴趣可以扩充一下这个软件功能,改进完善一下。
代码片段和文件信息
function varargout = adfilter_window(varargin)
% ADFILTER_WINDOW M-file for adfilter_window.fig
% ADFILTER_WINDOW by itself creates a new ADFILTER_WINDOW or raises the existing
% singleton*.
%
% H = ADFILTER_WINDOW returns the handle to a new ADFILTER_WINDOW or the handle to
% the existing singleton*.
%
% ADFILTER_WINDOW(‘CALLBACK‘hobjecteventDatahandles...) calls the local
% function named CALLBACK in ADFILTER_WINDOW.M with the given input arguments.
%
% ADFILTER_WINDOW(‘Property‘‘Value‘...) creates a new ADFILTER_WINDOW or raises the
% existing singleton*. Starting from the left property value pairs are
% applied to the GUI before adfilter_window_OpeningFunction gets called. An
% unrecognized property name or invalid value makes property application
% stop. All inputs are passed to adfilter_window_OpeningFcn via varargin.
%
% *See GUI Options on GUIDE‘s Tools menu. Choose “GUI allows only one
% instance to run (singleton)“.
%
% See also: GUIDE GUIDATA GUIHANDLES
% Edit the above text to modify the response to help adfilter_window
% Last Modified by GUIDE v2.5 27-Aug-2007 21:34:52
% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct(‘gui_Name‘ mfilename ...
‘gui_Singleton‘ gui_Singleton ...
‘gui_OpeningFcn‘ @adfilter_window_OpeningFcn ...
‘gui_OutputFcn‘ @adfilter_window_OutputFcn ...
‘gui_LayoutFcn‘ [] ...
‘gui_Callback‘ []);
if nargin & isstr(varargin{1})
gui_State.gui_Callback = str2func(varargin{1});
end
if nargout
[varargout{1:nargout}] = gui_mainfcn(gui_State varargin{:});
else
gui_mainfcn(gui_State varargin{:});
end
% End initialization code - DO NOT EDIT
% --- Executes just before adfilter_window is made visible.
function adfilter_window_OpeningFcn(hobject eventdata handles varargin)
% This function has no output args see OutputFcn.
% hobject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% varargin command line arguments to adfilter_window (see VARARGIN)
set(handles.lbox‘String‘cell(10)‘value‘1);
axes(handles.prev_axes)
imagesc(ones(256))colormap(gray);
%axis equal tight;
handles.ms=[22];
handles.phase=[];
if nargin > 4
for n=1:2:length(varargin)
if strcmpi(varargin{n}‘phasemaps‘)
handles.phase=varargin{n+1};
if ~isempty(handles.phase)
set(handles.lbox‘string‘sort(fieldnames(handles.phase)))
end
end
end
end
% Choose default command line output for adfilter_window
handles.output = hobject;
% Update handles structure
guidata(hobject handles);
% UIWAIT makes adfilter_window wait for user response (see UIRESUME)
uiwait(han
属性 大小 日期 时间 名称
----------- --------- ---------- ----- ----
文件 21088 2007-08-27 21:36 dh\adfilter_window.fig
文件 10091 2007-08-31 14:44 dh\adfilter_window.m
文件 20928 2007-08-27 16:10 dh\ddfilter_window.fig
文件 10651 2007-09-04 13:23 dh\ddfilter_window.m
文件 58552 2008-01-02 21:53 dh\dd_window.fig
文件 27233 2008-01-02 21:31 dh\dd_window.m
文件 8526 2009-02-07 14:17 dh\dh.fig
文件 61435 2009-02-07 14:13 dh\dh.m
文件 43576 2007-07-21 21:01 dh\dmin_window.fig
文件 13135 2007-08-02 14:30 dh\dmin_window.m
文件 50752 2007-08-26 23:01 dh\gpm_window.fig
文件 36275 2007-10-01 22:46 dh\gpm_window.m
文件 30960 2007-08-19 11:44 dh\holofilter_window.fig
文件 14030 2007-08-19 14:09 dh\holofilter_window.m
文件 23464 2007-08-27 16:43 dh\iscfilter_window.fig
文件 11115 2007-08-31 14:34 dh\iscfilter_window.m
文件 21096 2007-08-27 16:11 dh\mifilter_window.fig
文件 10123 2007-08-31 14:42 dh\mifilter_window.m
文件 58672 2007-12-25 15:38 dh\orm_window.fig
文件 40461 2009-02-07 12:17 dh\orm_window.m
文件 20968 2007-09-05 11:06 dh\rcunwrap_window.fig
文件 9699 2007-09-05 11:49 dh\rcunwrap_window.m
文件 88008 2007-10-01 22:13 dh\recon_window.fig
文件 58210 2008-01-23 17:51 dh\recon_window.m
文件 11616 2007-09-05 09:27 dh\rgunwrap_window.fig
文件 7308 2007-09-05 11:36 dh\rgunwrap_window.m
文件 10456 2007-07-28 23:40 dh\ri_window.fig
文件 8777 2007-07-30 09:56 dh\ri_window.m
文件 40320 2007-07-31 17:37 dh\rzo_window.fig
文件 24843 2007-08-19 11:33 dh\rzo_window.m
............此处省略43个文件信息
