六个8X8点阵.zip

六个8X8点阵拼接滚动显示汉字的C语言程序

#include “reg51.h“

#define uchar unsigned char
#define uint  unsigned int

#define Lie   P1

sbit SHCP = P2^0;
sbit  DS  = P2^1;
sbit STCP = P2^2;

uchar code led[ ] ={
0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00
0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00

0x000x000xF80x030x080x010x080x010x080x010x080x010x080x010xFF0xFF
0x080x010x080x010x080x010x080x010x080x010xF80x030x000x000x000x00

0x000x000xFE0xFF0x020x400x0A0x500x8A0x500x8A0x500x8A0x500xFA0x5F
0x8A0x500x8A0x560x8A0x540x0A0x500x020x400xFE0xFF0x000x000x000x00

0x100x400x100x200x100x100xFF0x0F0x100x200x100x400xF00x3F0x000x00
0x000x000xF80x7F0x080x200x080x200x080x200xF80x7F0x000x000x000x00

0x100x040x620x040x440xFE0x080x010x000x000xF00xFF0x100x420x100x42
0x100x420xFF0x7F0x100x420x100x420x100x420xF00xFF0x000x000x000x00

0x000x000x000x000x000x000x000x300x000x780x000x780x800x330xE00x03
0xF80x010xFE0x000x7F0x000x1F0x000x070x000x000x000x000x000x000x00

0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00
0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00

};


//uchar led[]={}

void shift16bit（uchar dat1uchar dat2）  //595??16???
{
 uchar i;
		 STCP=0;
		 for（i=0;i<8;i++）
		  {
			   SHCP=0;
			   if（dat1  & 0x80） DS=1;
			   else DS=0;
			   dat1<<=1;
			   SHCP=1;
		  }
		  for（i=0;i<8;i++）
		  {
			   SHCP=0;
			   if（dat2 &0x80） DS=1;
			   else DS=0;
			   dat2<<=1;
			   SHCP=1;
		  }
		 STCP=1;
}

void delay（uint x）
{
 uint i;
 for（i=0;i}

void main（）
{
 uchar ix=0;
 uint n;

 while（1）
 {
	for（n=0;n<5;n++）
	 for（i=0;i<24;i++）
	  {
	   Lie=i;
	   shift16bit（led[2*i+2*x+1]led[2*i+2*x]）;
	   delay（100）;
	  }
  x++;

if（x==96） x=0;
}
}

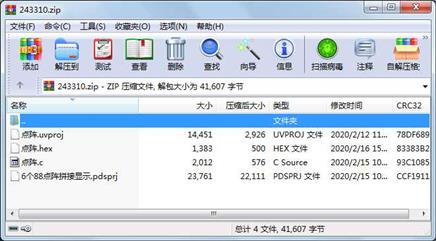

 属性            大小     日期    时间   名称
----------- ---------  ---------- -----  ----
     文件        2012  2020-02-15 10:20  点阵.c
     文件        1383  2020-02-16 15:52  点阵.hex
     文件       14451  2020-02-12 11:39  点阵.uvproj
     文件       23761  2020-02-15 10:05  6个88点阵拼接显示.pdsprj
